Type
Individual (I)
Module direction
South (S)
Module layout
Horizontal (H)
Supports no.
Two
Number of PV modules
6×6 (+6)
Description

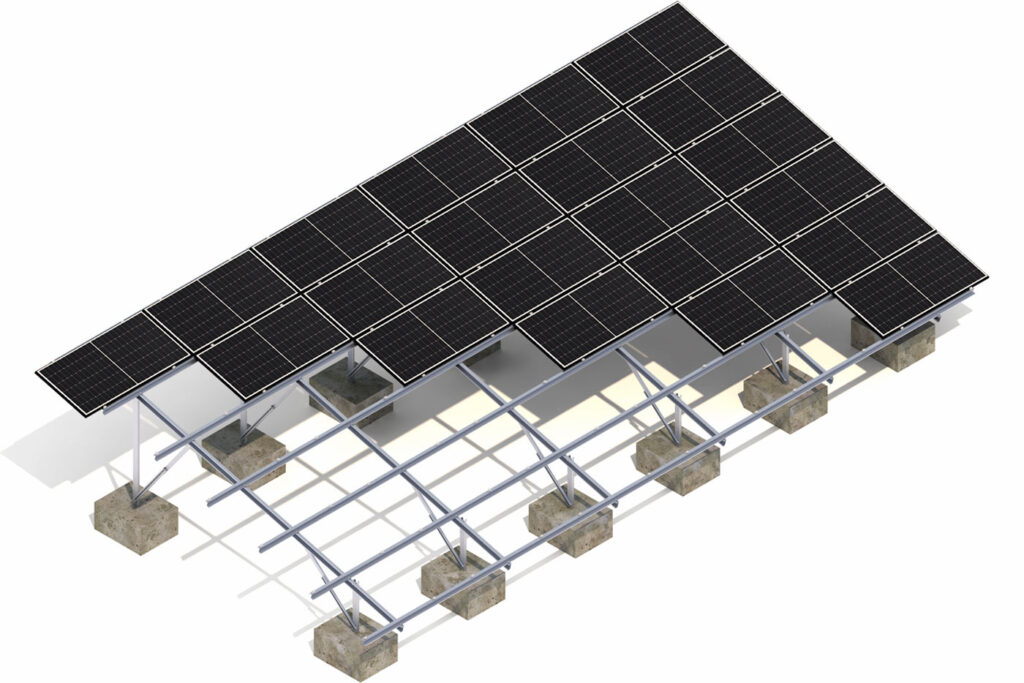

A multipart ground structure made of Magnelis™ steel designed
for soils and areas where additional ballasting is required
Excellent for constructing installations above 50 kW that require
building permits, and whose components need optimization due
to the specific location of the structure.
The mounting system is constructed from individually selected
structural elements, including beams, latches, and legs, allowing
for the use of the structure only for predetermined modules and
their sizes.
The screw system used for mounting beams, latches, and legs
does not require servicing as long as the installation is carried
out according to the instructions.
Before production, it is necessary to provide a site development
plan along with module installation instructions.
The system is designed for ground installations where the
primary criterion for choosing the structure is the need for
additional ballasting.
There is the possibility of applying a hybrid system, allowing for
the weighting of the leg/legs in places where it is not possible to
drill it/them to a specified depth.
We recommend that each structure intended for production be previously calculated by our Technical
Department regarding its installation in a specified wind and snow zone
The structure is designed for individually specified wind and snow zones, with individually selected ballast.
To initiate production, a prepayment is required, the amount of which is specified in the offer
1
2
3
4
5
1
Purlin
2
Back leg/support
3
Latch
4
Strut
5
Front leg/support
CHARACTERISTICS
G-B-I-S/H/2/6×6
Type of substrate
Ground (G)
Construction installation method
Ballast structure (B)
Type of construction
Individual (I)
Module orientation
South (S)
Module layout
Horizontal (H)
Number of columns
2
Number of PV modules
6×6 (+6)
Type of modules
Standard/Bifacial
Shape of the column
C-profile / CW-profile
Does the construction require additional ballast?
Yes
Is it possible to use a hybrid solution
(piling + ballast)
Yes - possibility of additinal ballasting
Minimum number of modules on the structure
36
Height of standard clamps (mm)
35
Thickness of standard clamps (mm)
5
Maximum PV module size (mm)
-
Distribution method
Individual order
G-B-I-S/V/1/2×4
Rodzaj dachu1
Dach płaski (FR)
Rodzaj dachu1
Dach płaski (FR)
MAX-LONG2100
MAX-LONG2300
MAX-LONG2500
Rodzaj dachu1
9,76
9,76
9,76
Rodzaj dachu1
9,76
9,76
9,76
LIST OF PARTS - BASE OF CONSTRUCTION
End clamp
35
Nature/Black
KLK50/35ALN
KLK50/35ALCZ
Middle clamp
50 universal
Nature/Black
KLSR50ALN
KLSR50ALCZ
Flange nut
serrated
M8 DIN6923 A2
NKM8A2
Hexagonal nut
M10 IE
NM10Z
Washer M10 300HV
ISO7093-1 IE
PSZM10Z
Allen screw
M8X100 DIN912 A2
SIM8X100A2
Hexagonal screw
M10X20 IE
SM10X20Z
LIST OF PARTS - OTHER INSTALLATION ELEMENTS
Strut
