Piled structure

Ground structures (G)
G-P-I-S/H/2/6×6
Rodzaj konstrukcji
Uniwersalna (US)
Kierunek modułów
Południe (S)
Układ modułów
Poziom (H)
Sposób montażu
Krótki bok (SA)
Max długość modułu
2100
Type
Individual (I)
Module direction
South (S)
Module layout
Horizontal (H)
Supports no.
Two
No. / Max PV module length
6×6 (+6)
DESCRIPTION

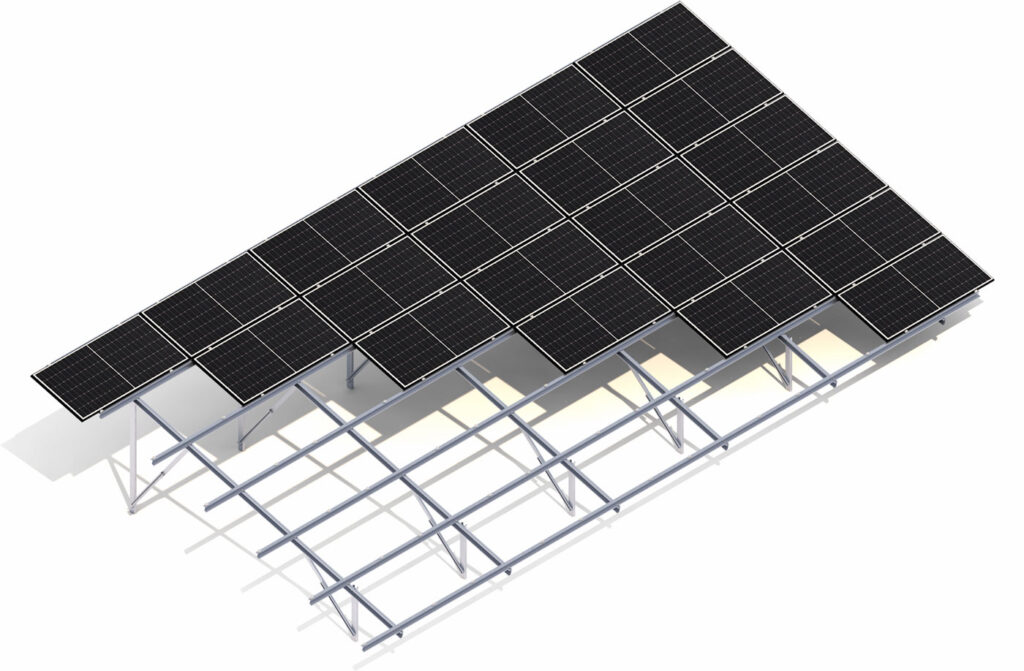

A multipart ground structure made of Magnelis™ steel designed for soil. Piled, without the need for additional ballasting.
Excellent for constructing installations above 50 kW, that require building permits, and whose components need optimization due to the specific location of the structure.
The mounting system is constructed from individually selected structural elements, including beams, latches, and legs, allowing for the use of the structure only for predetermined modules and their sizes.
The screw system used for mounting beams, latches, and legs does not require servicing, as long as the installation is carried out according to the instructions
Before production, it is necessary to provide a site development plan, along with module installation instructions and geotechnical conditions, including previous piling test results
The system is designed for ground installations, where, due to challenging geotechnical conditions (e.g., areas with dolomite), it is necessary to use two-piece columns, including a lower column with increased strength (CW profile) for piling in rocky soils.
There is the possibility of applying a hybrid system, allowing for the weighting of the leg/legs in places where it is not possible to drill it/them to a specified depth.
We recommend that each structure intended for production be previously calculated by our Technical Department regarding its installation in a specific wind and snow zone, as well as based on geotechnical conditions examined beforehand.
The structure is designed for wind and snow zones specified as W1S2, with piling not deeper than 1500. To initiate production, no prepayment is required, unlike constructions produced for individual orders.
1
2
3
4
5
1
Purlin
2
Latch
3
Back leg/support
4
Strut
5
Front leg/support
CHARACTERISTICS
G-P-I-S/H/2/6×6
Type of substrate
Ground (G)
Construction installation method
Piled structure (P)
Type of construction
Individual (I)
Module orientation
South (S)
Module layout
Horizontal (H)
Number of columns
2
Number of PV modules
6×6 (+6)
Type of modules
Standard/Bifacial
Shape of the column
C-profile / CW-profile
Does the construction require additional ballast?
No
Is it possible to use a hybrid solution (piling + ballast)?
Yes - possibility of additinal ballasting
Minimum number of modules on the structure
36
Height of standard clamps (mm)
35
Thickness of standard clamps (mm)
5
Maximum PV module size (mm)
-
Distribution method
Individual order
FR-W-US-S/V/LAZ
Rodzaj dachu1
Dach płaski (FR)
Rodzaj dachu1
Dach płaski (FR)
MAX-LONG2100
MAX-LONG2300
MAX-LONG2500
Rodzaj dachu1
9,76
9,76
9,76
Rodzaj dachu1
9,76
9,76
9,76
LIST OF PARTS - BASE OF CONSTRUCTION
End clamp 35 Nature/Black
KLK50/35ALN
KLK50/35ALCZ
Middle clamp 50 universal Nature/Black
KLSR50ALN
KLSR50ALCZ
Flange nut serrated M8 DIN6923 A2
NKM8A2
Hexagonal nut M10 IE
NM10Z
Washer M10 300HV ISO7093-1 IE
PSZM10Z
Allen screw M8X100 DIN912 A2
SIM8X100A2
Hexagonal screw M10X20 IE
SM10X20Z
LIST OF PARTS - OTHER INSTALLATION ELEMENTS
Bipartite support leg CW-profile
Strut
