Type
Universal (US)
Module direction
South (S)
Module layout
Vertical (V)
Supports no.
Four
No. / Width (max) of PV modules
3×3 / 1200

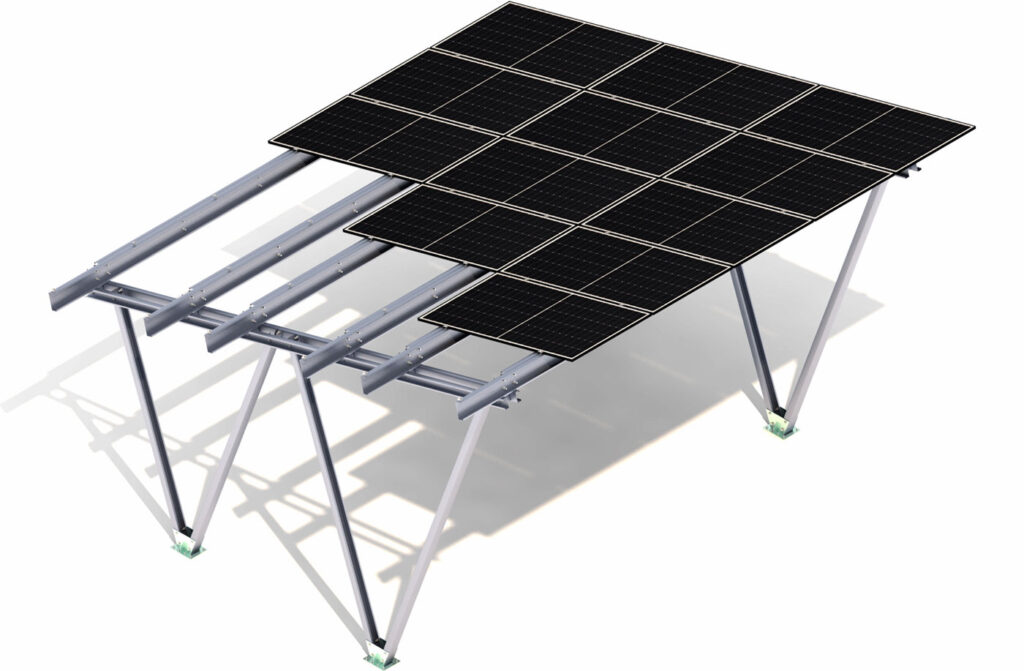

DESCRIPTION
Universal mounting system built with adjustable and densely perforated beams, allowing for the use of structures for modules of different power and size.
A four-support system in the shape of the letter V.
A multipart construction made of MagnelisTM steel, designed for
various types of car ramps and parking lots - with the need for
additional ballasting.
The applied screw system for mounting beams, latches, and
posts does not require servicing, provided that the installation is
carried out in accordance with the instructions.
Excellent for building small home installations up to 10 kW.
In the case of multi-space carports, a modular system has been applied, allowing for the assembly and connection of an unlimited number of segments.
There is an option to use a hybrid system, where the poles can be attached to ready-made ballast blocks placed directly on the ground in places where it is not possible to sink the blocks to the necessary depth.
Upon the customer's request, every structure intended for production can be analyzed by our Technical Department regarding its installation in a specified wind and snow zone, as well as based on previously examined geotechnical conditions.
The structure is designed for wind and snow zones specified as W1S2.
To initiate production, a prepayment is required, the amount of which is specified in the offer.
1
2
3
4
5
6
7
1
Leg/support 1
2
Leg/support 2
3
Base of the construction
4
Leg/support 3
5
Latch
6
Purlin
7
Leg/support 4
CHARACTERISTICS
CP1-US-S/V/4/3×3/MAX-WIDTH1200
Type of substrate
Ground
Type of construction and installation method
Carport (CP), mounted to a prefabricated foundation using chemical anchors
Type of construction
Universal (US)
Module orientation
South (S)
Module layout
Vertical (V)
Number of PV modules
3×3
Type of modules
Standard/Bifacial
Shape of the column
V-shaped
Does the construction require additional ballast?
No
Is it possible to use a hybrid solution
(piling + ballast)?
No
Minimum number of modules on the construction
9 in case the width of the modules does not exceed 1200 mm
Height of standard clamps (mm)
35
Thickness of standard clamps (mm)
5
Maximum length of the PV module (mm)
-
Standard inclination
15 ̊
Distribution method
Individual order
FR-W-US-S/V/LAZ
Rodzaj dachu1
Dach płaski (FR)
Rodzaj dachu1
Dach płaski (FR)
MAX-LONG2100
MAX-LONG2300
MAX-LONG2500
Rodzaj dachu1
9,76
9,76
9,76
Rodzaj dachu1
9,76
9,76
9,76
LIST OF PARTS - BASE OF CONSTRUCTION
End clamp 35 Nature/Black
KLK50/35ALN
KLK50/35ALCZ
Middle clamp 50 universal Nature/Black
KLSR50ALN
KLSR50ALCZ
Flange nut serrated
M8 DIN6923 A2
NKM8A2
Hexagonal nut M12 IE
NM12Z
Hexagonal nut M16 IE
NM16Z
Washer M12 300HV ISO7093-1 IE
PSZM12Z
Washer M16 300HV ISO7093-1 IE
PSZM16Z
Allen screw M8X100 DIN912 A2
SIM8X100A2
Hexagonal screw M12X30 IE
SM12X30Z
Hexagonal screw M16X30 IE
SM16X30Z
Support frame
Purlin
LIST OF PARTS - OTHER INSTALLATION ELEMENTS
Foundation footing
